Applications
- Beneath foundation slabs and on walls with single-sided or double-sided formwork systems.
- Beneath slabs and on external walls of cut-and-cover tunnels, utility tunnels and underground roads.
- Beneath slabs and on external walls of metro stations, and in other confined areas requiring waterproofing.

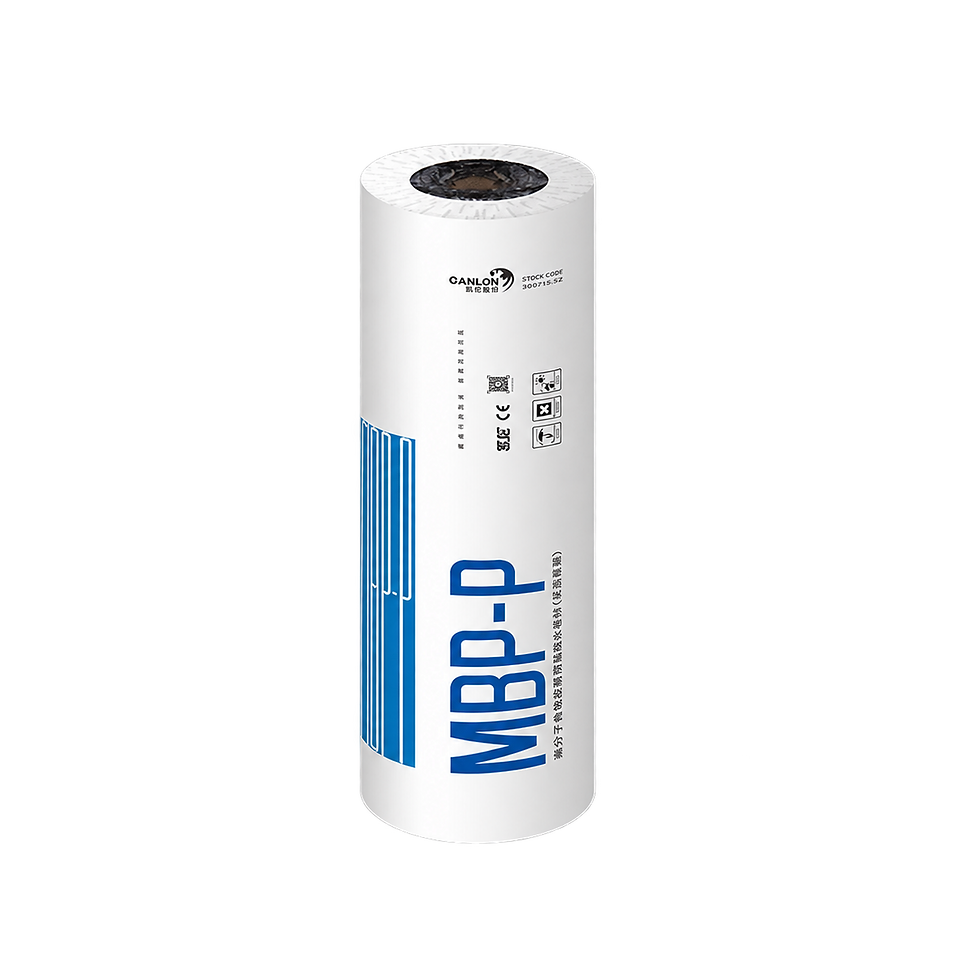

MBP-P Pre-applied waterproofing membrane
MBP-P is a pre-applied waterproofing membrane that forms a permanent, full bond with concrete. Its HDPE/TPO sheet, pressure-sensitive adhesive and weather-resistant granular layer provide long-term protection for foundations and underground structures
Thickness, mm
Sheet thickness, mm
Width, m
Length, m
1.2
1.5
≥ 0.75
≥ 1.0
1 or 2
20
1.7
≥ 1.2
1 or 2
1 or 2
20
15 or 20
Key advantages
-
Full bond to concrete - once the concrete has cured, the membrane forms a permanent bond with the structure, preventing water migration between the membrane and the concrete
-
Prevents lateral water migration - even in the event of local damage, water cannot spread beneath thе membrane
-
Pre-applied system - the membrane is installed before concrete placement, so access to the outside of the structure is not required after completion
-
Reliable waterproofing - provides long-term protection against groundwater and moisture
-
Suitable for complex foundations - effective for foundation slabs, basements, underground car parks, tunnels and other underground structures.
-
Weather resistance - the granular protective layer provides protection during installation
-
Easier and faster installation compared with traditional post-applied waterproofing systems
-
Reduces the risk of leaks - there are no air gaps between the membrane and the concrete where water could accumulate
-
High mechanical strength - the HDPE or TPO polymer layer is resistant to tearing and puncture
-
Durability - the membrane retains its waterproofing properties throughout the service life of the structure
Basement waterproofing for industrial and civil buildings
USES
CERTIFICATES AND TEST REPORTS
CE Certification (EN 13967, EN 13501-1)
LADBS Approval (Local Authority Building Control, UK)
EN Standard Series (European Standard)
Tested by ILAC-accredited laboratories
Pre-applied waterproofing systems for tunnels, subways and underground structures
